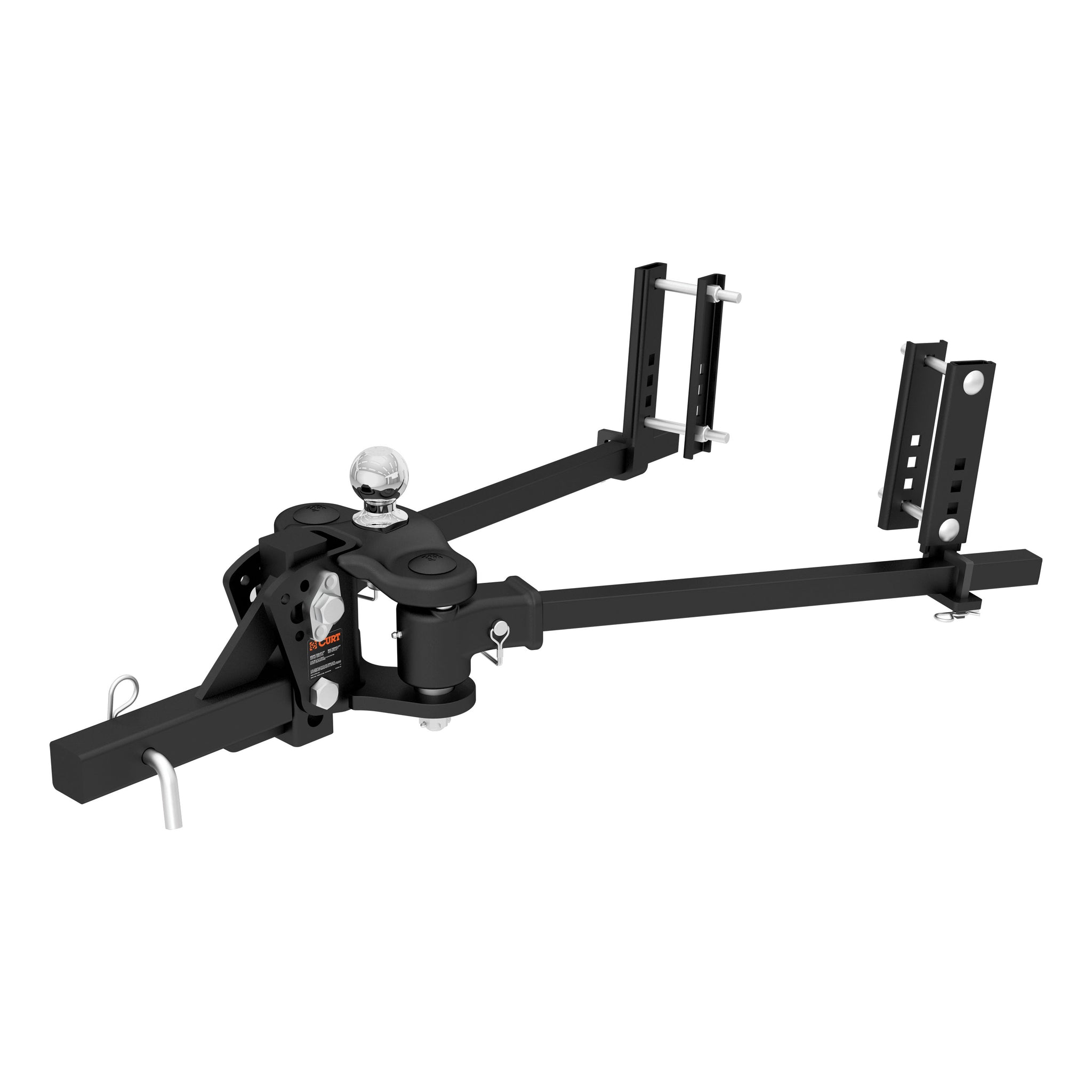

TruTrack 4P Weight Distribution Hitch With 4x Sway Control 8-10K

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack 4P uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy. In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers.

• 2" shank can be flipped to provide necessary drop or rise

Attributes:

• Brand Name: CURT
• GTIN: 00612314175000
• 17: Black
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Class ID: 0
• Container Cases Qty - XA: 300
• Container Load Type - XA: PALLETS
• Container Pallet Qty - XA: 20
• Container Type - XA: 40GP
• Container Unit Qty - XA: 300
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 36580
• Finish - XA: CARBIDE BLACK POWDER COAT
• Gross Trailer Weight (GTW): 10,000 LB
• Item Class - XA: OBS
• Item Height - XA: 11.500
• Item Length - XA: 37.000
• Item Width - XA: 13.000
• Master Case Height Inches - XA: 11.600
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 13.800
• Master Case Qty - XA: 1
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 119.000
• Master Case Width Inches - XA: 37.400
• Material - XA: Carbon Steel
• Mount Type Description - XA: Blank
• Pallet Case Per - XA: 15
• Pallet Case Per Layer - XA: 3
• Pallet Cases Per - XA: 15
• Pallet Cases Per Layer - XA: 3
• Pallet Layer of Cases - XA: 5
• Pallet Qty - XA: 0.000
• Pallet Total Height Inches - XA: 63.400
• Pallet Total Weight Per - XA: 1829.000
• Parcel Allowed - XA: Yes
• Product Weight - XA: 121.300
• Rate Class - XA: 60.0
• Retail Height - XA: 11.500
• Retail Length - XA: 37.000
• Retail Width - XA: 13.000
• Sales Family Code - XA: WDIST
• Sales Family Description - XA: WEIGHT DISTRIBUTION
• Sales Group Description - XA: TRUTRACK WD SYSTEM
• Shipping Weight - XA: 121.300
• Side Application Type Description - XA: Blank
• Tariff 301 - XA: Yes
• Tongue Weight (TW): 1,000 LB
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 13.0000 x 11.5000 inches
• Weight: 121.3000 POUNDS
