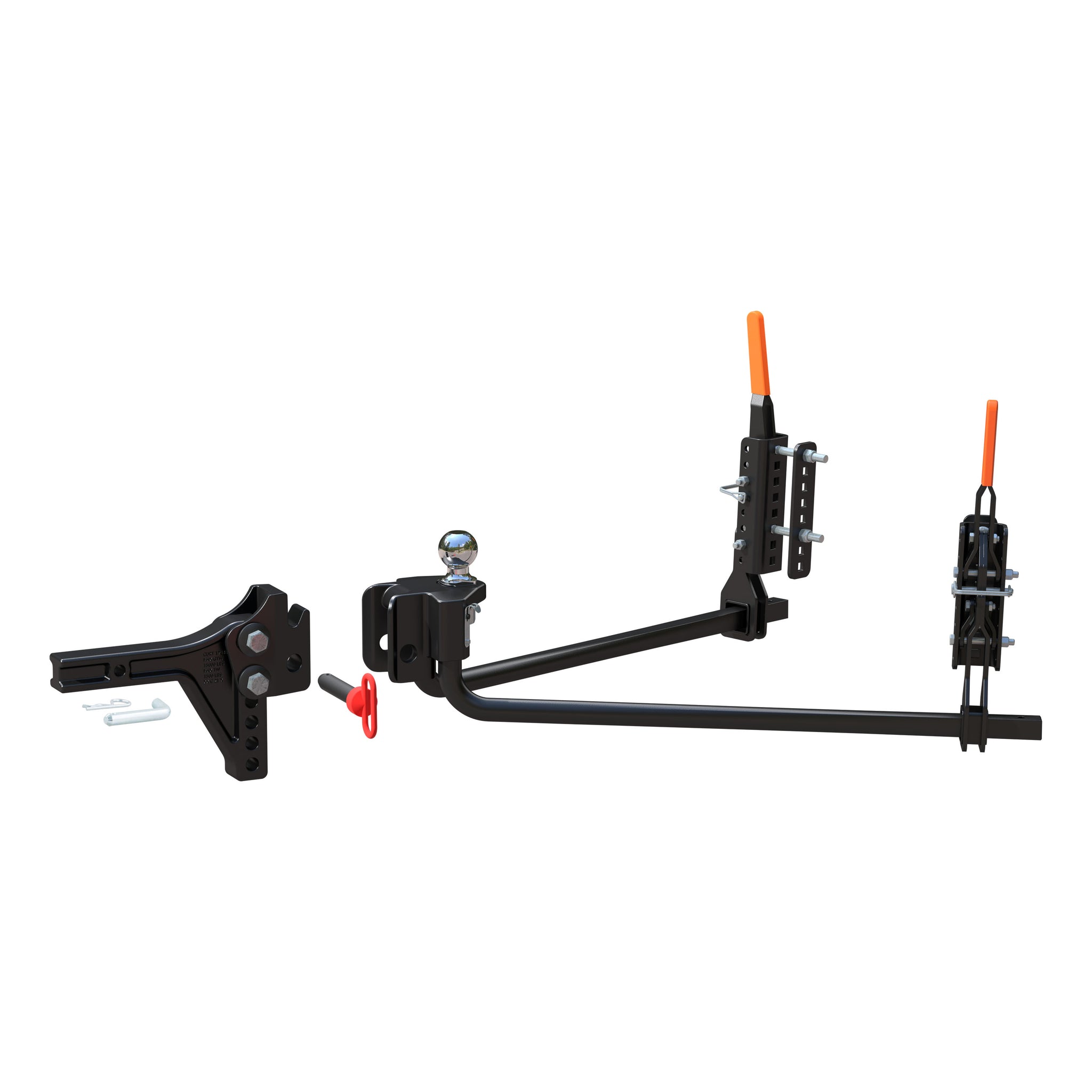

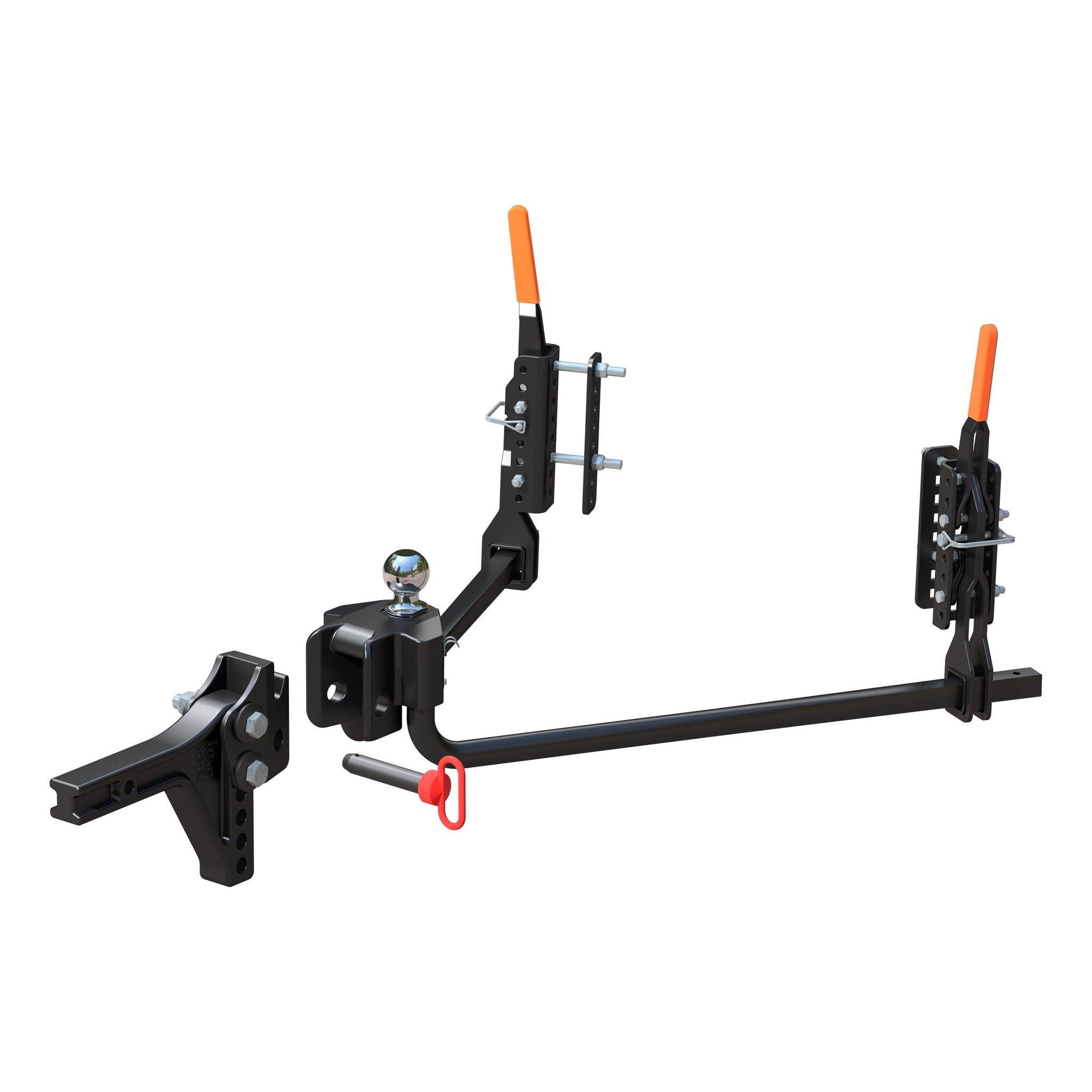

TruTrack 2P Trailer-Mounted Weight Distribution Hitch 8-10K

The CURT TruTrack trailer-mounted weight distribution hitch is a leader in its class and an innovative approach to weight distribution. It uses a unique quick-connect coupler that allows you to couple and uncouple your tow vehicle without resetting the spring bars each and every time. Traditional WD hitch systems require the spring bars to be connected each time you tow and disconnected each time you uncouple to park your trailer. The TruTrack removes the hassle of resetting and adjusting the hitch each time you need to hitch your tow vehicle or park your trailer. The TruTrack utilizes the same valuable weight distribution technology that the TruTrack system provides, which distributes weight evenly across the coupling point by using spring bars that leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. The TruTrack also features heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically, which are more dependable and effective than chain systems. Many weight distribution hitches are made to work with a sway control attachment, however, they do not include the WD attachment itself. The TruTrack system is designed with spring bars integrated into the hitch itself. The TruTrack system is also compatible with other CURT products that streamline your towing experience and reduce stress. Products such as the adjustable channel mount hitch with dual ball accessory. This hitch adjusts in height and provides extra leveling capability and is especially useful if towing multiple trailers with varying heights or your tow vehicle is tall or lifted.

• Two distinct points of sway control work together to keep trailer aligned
• Limited lifetime warranty (one-year finish, one-year parts)
• Heavy-duty, fabricated head can be used for precise leveling
• Up to 10,000 lbs. GTW / 1,000 lbs. TW
• Head tilt adjustment feature simplifies setup and eliminates need for washers
• Protected by a durable carbide powder coat finish
• Equipped with durable, forged steel spring bars for reliable strength
• Innovative horn cradles the trailer head, providing effortless coupling
• Patent-pending trailer-mounted design simplifies installation and decoupling
• Brackets use friction to resist lateral movement and distribute weight evenly
• Unique snap-up brackets mount trunnion bars with no extra tools needed to lift
• Independent, two-part system eases lifting by keeping hitch weight on trailer
• Adjustable brackets provide fixed support unlike spring bar chain models
• Integrated sway control reduces sway and levels the vehicle and trailer
• Prevents need to uninstall spring bars or remove hitch when disconnecting

Attributes:

• Brand Name: CURT
• GTIN: 00612314055432
• 17: Black
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Container Cases Qty - XA: 200
• Container Load Type - XA: FLOOR
• Container Pallet Qty - XA: 20
• Container Type - XA: 20GP
• Container Unit Qty - XA: 200
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 25560
• Finish - XA: Blank
• Gross Trailer Weight (GTW): 10,000 LBS
• Item Class - XA: OBS
• Item Height - XA: 0.000
• Item Length - XA: 0.000
• Item Width - XA: 0.000
• Master Case Height Inches - XA: 8.500
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 39.500
• Master Case Qty - XA: 1
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 124.500
• Master Case Width Inches - XA: 16.750
• Material - XA: FORGED STEEL
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 10
• Pallet Case Per Layer - XA: 5
• Pallet Cases Per - XA: 10
• Pallet Cases Per Layer - XA: 5
• Pallet Layer of Cases - XA: 2
• Pallet Qty - XA: 0.000
• Pallet Total Height Inches - XA: 40.550
• Pallet Total Weight Per - XA: 1278.000
• Parcel Allowed - XA: Yes
• Product Weight - XA: 0.000
• Rate Class - XA: 60.0
• Receiver Tube Size: 2 IN
• Retail Height - XA: 8.500
• Retail Length - XA: 39.500
• Retail Width - XA: 16.750
• Sales Family Code - XA: WDIST
• Sales Family Description - XA: WEIGHT DISTRIBUTION
• Sales Group Description - XA: ROUND BAR WD SYSTEM
• Shipping Weight - XA: 123.500
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: Yes
• Tongue Weight (TW): 1,000 LBS
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 39.5000 x 16.7500 x 8.5000 inches
• Weight: 123.5000 POUNDS
