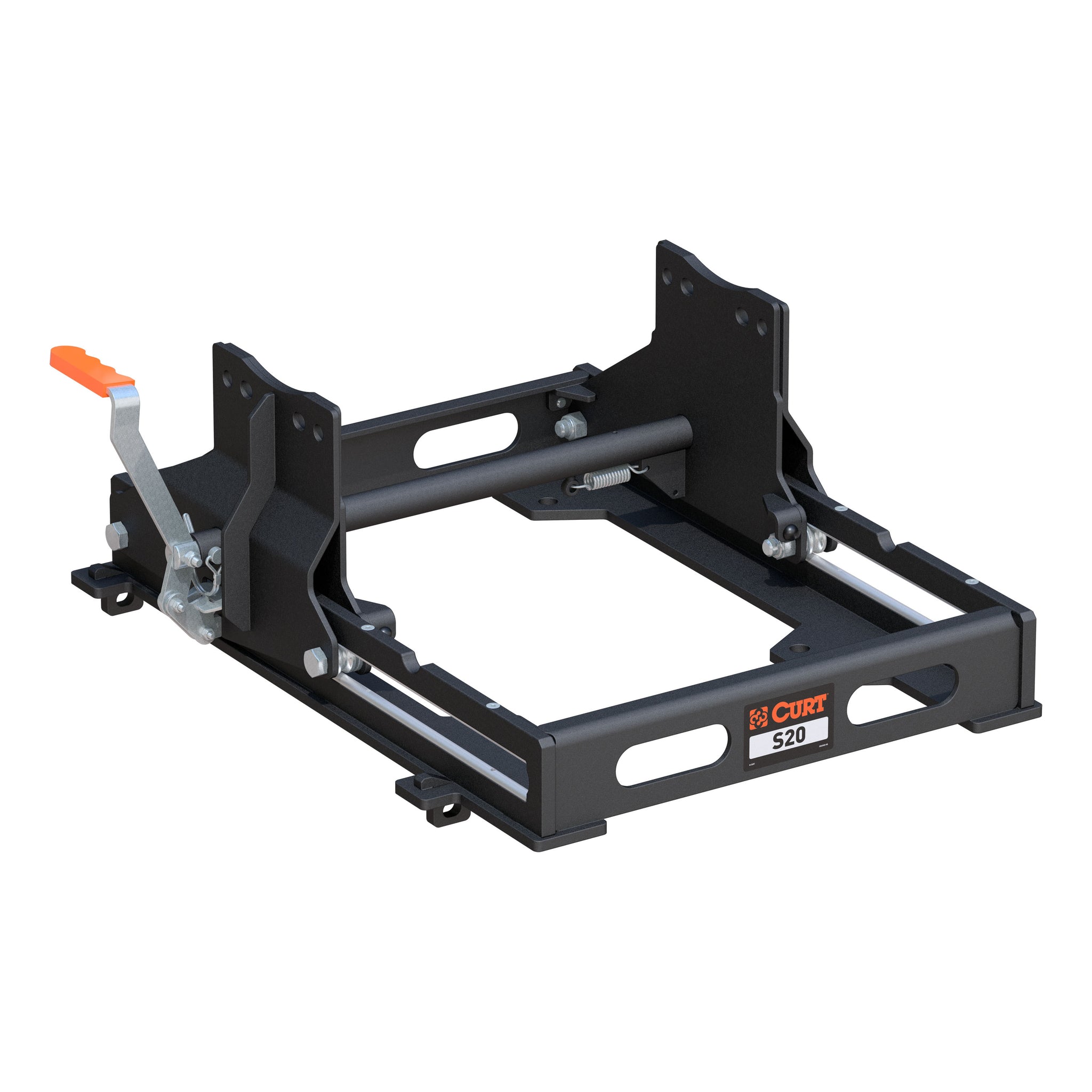

S20 5th Wheel Slider 20000 Lbs.

The CURT S20 slider makes it easy to tow a 5th wheel trailer with your short-bed truck. This slider features a quiet design, an auto-latching mechanism, an ergonomic handle and industry-standard mounting points. The S20 sliding 5th wheel hitch is built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the S20 installed, you can safely move the coupling point 12 inches toward the rear, allowing your short-bed truck to make turns without obstruction. The S20 slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the S20 automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation. Simply set the lever, pull the truck forward and you're ready to maneuver. The auto-latches will lock the slider into the rearward coupling position. The S20 sliding 5th wheel is rated for trailers up to 20,000 pounds, and it is fully tested to SAE J2638 specifications. It comes with standard mounting points to easily mount onto all industry-standard base rails.

• 12" rearward movement provides extra turning clearance for short-bed trucks

Attributes:

• Brand Name: CURT
• GTIN: 00612314052073
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Container Cases Qty - XA: 308
• Container Load Type - XA: PALLETS
• Container Pallet Qty - XA: 22
• Container Type - XA: 40HCGP
• Container Unit Qty - XA: 308
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 35090
• Finish - XA: CARBIDE BLACK POWDER COAT
• Gross Trailer Weight (GTW): 20,000 LBS
• Item Class - XA: OBS
• Item Height - XA: 13.390
• Item Length - XA: 30.710
• Item Width - XA: 28.350
• Master Case Height Inches - XA: 13.390
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 30.710
• Master Case Qty - XA: 1
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 110.360
• Master Case Width Inches - XA: 28.350
• Material - XA: Carbon Steel
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 14
• Pallet Case Per Layer - XA: 2
• Pallet Cases Per - XA: 14
• Pallet Cases Per Layer - XA: 2
• Pallet Layer of Cases - XA: 7
• Pallet Qty - XA: 0.000
• Pallet Total Height Inches - XA: 99.000
• Pallet Total Weight Per - XA: 1595.040
• Parcel Allowed - XA: Yes
• Product Weight - XA: 109.360
• Rate Class - XA: 70.0
• Retail Height - XA: 13.390
• Retail Length - XA: 30.710
• Retail Width - XA: 28.350
• Sales Family Code - XA: FIFTH
• Sales Family Description - XA: FIFTH WHEEL
• Sales Group Description - XA: FIFTH WHEEL ROLLERS
• Shipping Weight - XA: 109.360
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: Yes
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: CN
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.7100 x 28.3500 x 13.3900 inches
• Weight: 109.3600 POUNDS
