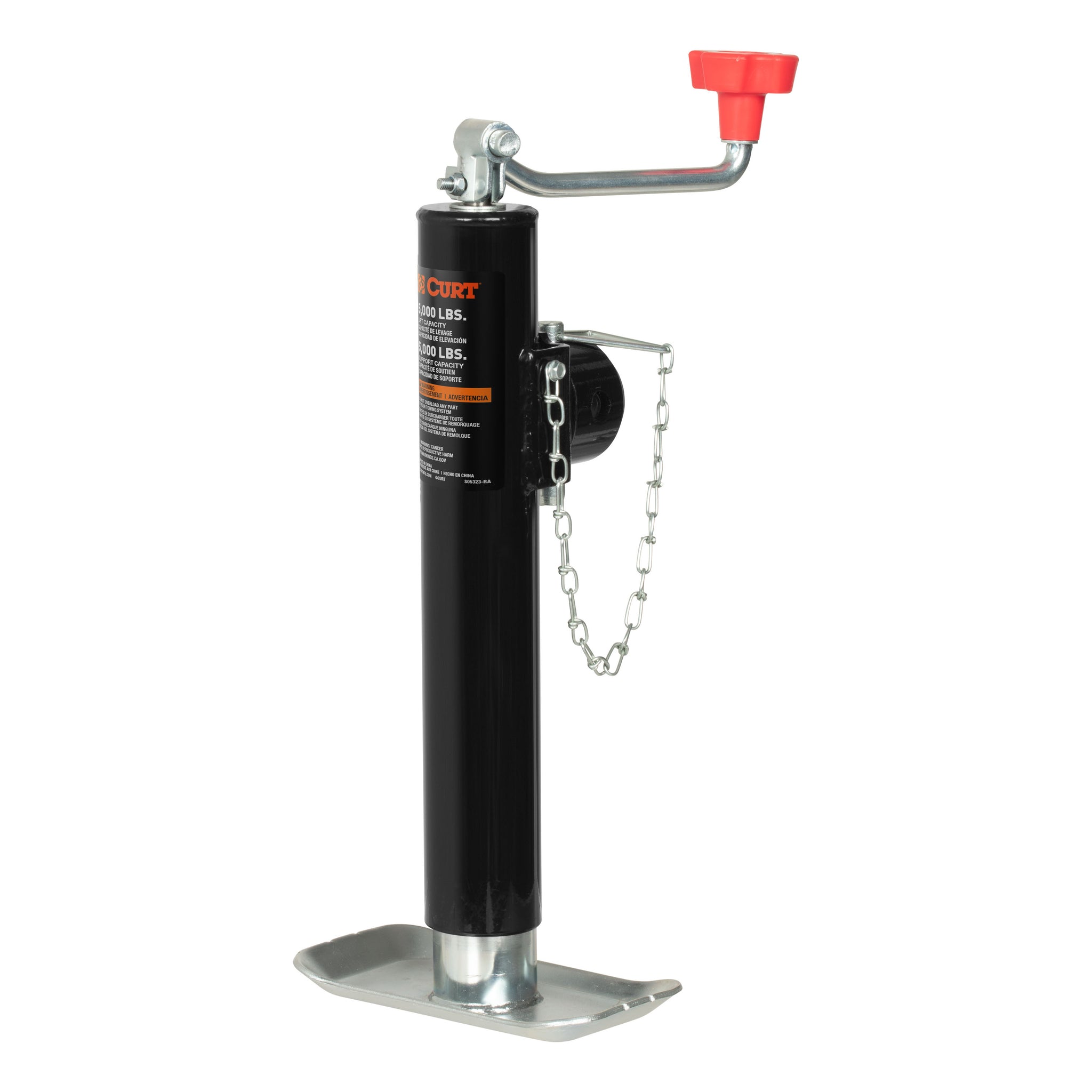

Pipe-Mount Swivel Trailer Jack With Top Handle (5 000 Lbs 10" Travel)

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field. CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount. This CURT pipe mount swivel jack features a support capacity of 5,000 lbs., a lift capacity of 5,000 lbs. and a travel of 10". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a top-wind handle and includes a weldable pipe with a 9/16" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.

• Rated for 5,000 lbs. support capacity and 5,000 lbs. lift capacity
• Top-wind claw handle easily raises or lowers trailer coupler
• Weld-on pipe-mount accepts a 9/16" pull-pin
• Swivel bracket allows jack to fully swing up and out of the way for travel
• Pull-pin keeps jack securely locked in place
• 10" of vertical travel accommodate multiple ball heights
• Limited lifetime warranty (one-year finish, one-year parts)

Attributes:

• Brand Name: CURT
• GTIN: 00612314056200
• Box Height in Inches - XA: 10
• Box Length in Inches - XA: 24
• Box Width in Inches - XA: 10
• Container Cases Qty - XA: 20
• Container Load Type - XA: PALLETS
• Container Pallet Qty - XA: 20
• Container Type - XA: 20GP
• Container Unit Qty - XA: 2400
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 29088
• Finish - XA: BLACK POWDER COAT
• Item Class - XA: OBS
• Item Height - XA: 0.000
• Item Length - XA: 0.000
• Item Width - XA: 0.000
• Lift Capacity: 3,000 LBS
• Master Case Height Inches - XA: 37.500
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 47.000
• Master Case Qty - XA: 120
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 1425.400
• Master Case Width Inches - XA: 40.000
• Material - XA: Carbon Steel
• Mount Type Description - XA: Not Applicable
• Pallet Cases Per - XA: 120
• Pallet Cases Per Layer - XA: 1
• Pallet Layer of Cases - XA: 1
• Pallet Qty - XA: 0.000
• Pallet Total Height Inches - XA: 37.500
• Pallet Total Weight Per - XA: 1454.400
• Parcel Allowed - XA: Yes
• Product Weight - XA: 10.270
• Rate Class - XA: 70.0
• Retail Height - XA: 18.000
• Retail Length - XA: 8.000
• Retail Width - XA: 6.000
• Sales Family Code - XA: TPACC
• Sales Family Description - XA: TRAILER PARTS AND ACCESS
• Sales Group Description - XA: TRAILER JACK
• Shipping Weight - XA: 12.000
• Side Application Type Description - XA: Not Applicable
• Support Capacity: 5,000 LBS
• TRAVEL: 10
• Tariff 301 - XA: Yes
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 8.0000 x 6.0000 x 18.0000 inches
• Weight: 12.0000 POUNDS
