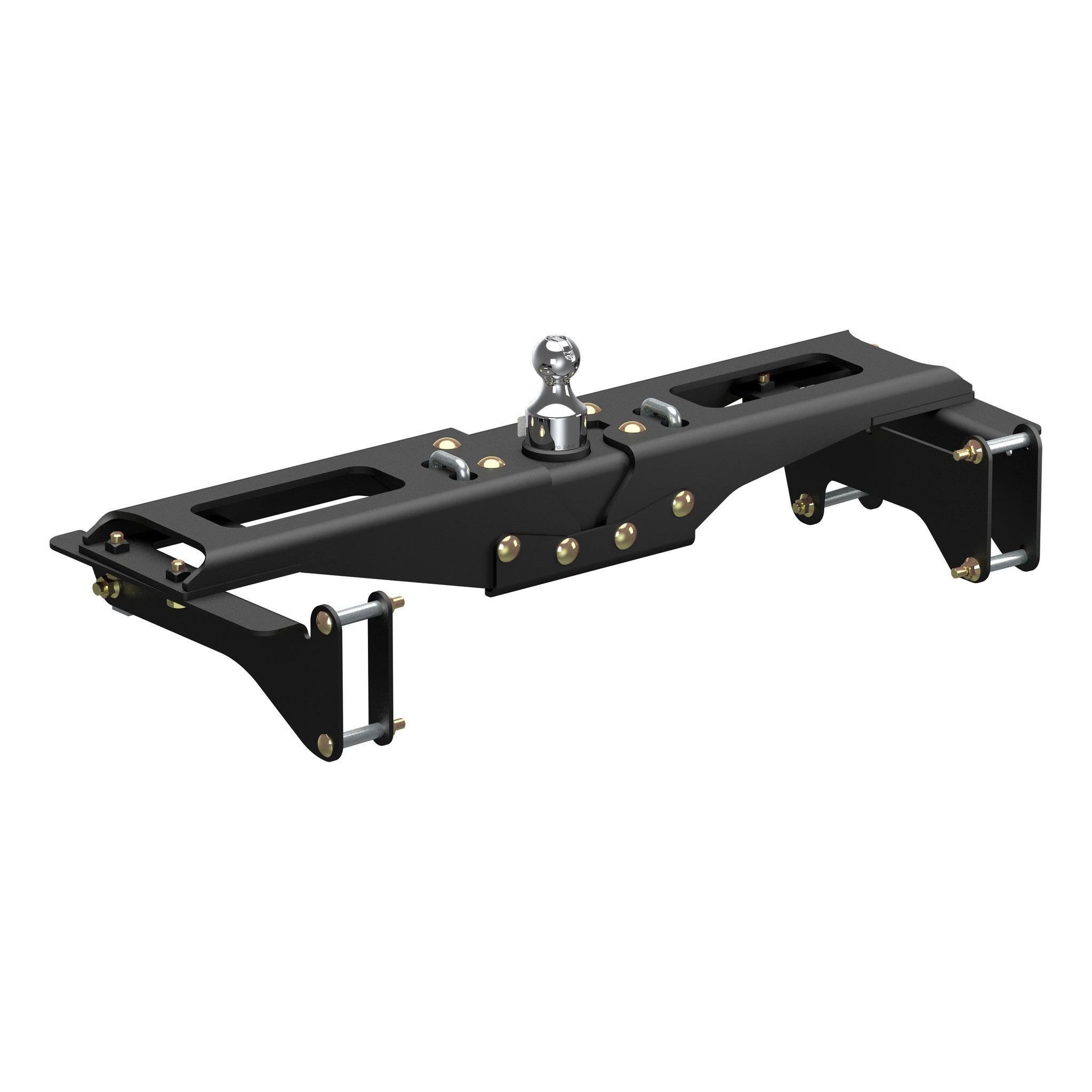

OEM-Style Gooseneck Hitch Select Chevrolet Silverado GMC Sierra 2500 3500 HD

Ingenious design and reliability -- these words don't just describe the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD; they were the inspiration for the CURT OEM-style gooseneck hitch for GM. This hitch is built to excel in two key things: ease of installation that comes from an ingenious design and safe, reliable towing even with heavy-duty gooseneck trailers. The Chevy / GMC-compatible gooseneck hitch boasts a one-person installation. It is built with fewer pieces than competitor hitches to keep installation simple, and the pieces are designed to be compact so they can be lifted and bolted into place without the help of a second person. We've also eliminated a number of steps from the process to speed up installation time and reduce the number of modifications needed on the vehicle. The hitch does not require the exhaust or spare tire to be lowered. It requires no welding, temporary truck bed removal or even bed flange trimming. Best of all, pre-existing factory holes are used to mount the hitch to the truck's frame, meaning the only drilling necessary is for the gooseneck ball hole and safety chains in the truck bed. Once installed, the OEM-style gooseneck hitch for Chevrolet / GMC offers simple operation and highly secure towing. It is tested in accordance with SAE J2638 to safely tow up to 38,000 lbs. GTW. Instead of a side handle mounted under the wheel well, it uses a latch-locking trailer ball. This patented 2-5/16" ball easily drops into the gooseneck head from above the truck bed and is secured in place with a simple quarter-turn of the latch. This Chevrolet Silverado / GMC Sierra 2500 HD and 3500 HD gooseneck hitch also features heavy-duty 5/8" safety chain anchors for dependable security for your trailer, whether you're towing livestock, machinery or construction materials. To ensure maximum quality, the CURT OEM-style gooseneck hitch for GMC and Chevrolet comes with a tough A-coat finish to easily resist rust and scratches.

• Heavy-duty 5/8" safety chain loops for a reliable connection
• Up to 38,000 lbs. GTW and 9,500 lbs. vertical load
• Limited lifetime warranty (one-year finish, one-year parts)
• Assembled in USA
• Protected by a highly durable, rust-resistant, liquid A-coat
• No drilling necessary except the truck bed holes
• Weight ratings are limited to vehicle manufacturer's stated capacities
• Tested for safety in accordance with SAE J2638
• Installation also requires no welding, bed flange trimming or bed removal
• Easy, one-person installation requires no lowering of exhaust or spare tire
• Places ball in front of rear axle for proper distribution of weight and handling
• Included patented 2-5/16" ball eliminates the need for a side handle
• Requires no additional hardware or installation brackets

Attributes:

• Brand Name: CURT
• GTIN: 00612314606429
• Ball Diameter: 2-5/16 IN
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Container Cases Qty - XA: 0
• Container Pallet Qty - XA: 0
• Container Unit Qty - XA: 0
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 0
• Finish - XA: A-COAT
• Gooseneck Hitch Type: OEM Compatible
• Gross Trailer Weight (GTW): 38,000 LB
• Item Class - XA: OMF
• Item Height - XA: 0.000
• Item Length - XA: 0.000
• Item Width - XA: 0.000
• Master Case Height Inches - XA: 0.000
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 0.000
• Master Case Qty - XA: 0
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 0.000
• Master Case Width Inches - XA: 0.000
• Material - XA: Carbon Steel
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 0
• Pallet Cases Per Layer - XA: 0
• Pallet Layer of Cases - XA: 0
• Pallet Qty - XA: 1.000
• Pallet Total Height Inches - XA: 0.000
• Pallet Total Weight Per - XA: 0.000
• Parcel Allowed - XA: Yes
• Product Weight - XA: 0.000
• Rate Class - XA: 77.5
• Retail Height - XA: 10.000
• Retail Length - XA: 48.000
• Retail Width - XA: 40.000
• Sales Family Code - XA: GOOSE
• Sales Family Description - XA: GOOSENECK
• Sales Group Description - XA: INSTALL BRACKETS
• Shipping Weight - XA: 134.000
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: No
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Vertical Load Capacity: 9,500 LB
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 48.0000 x 40.0000 x 10.0000 inches
• Weight: 134.0000 POUNDS
