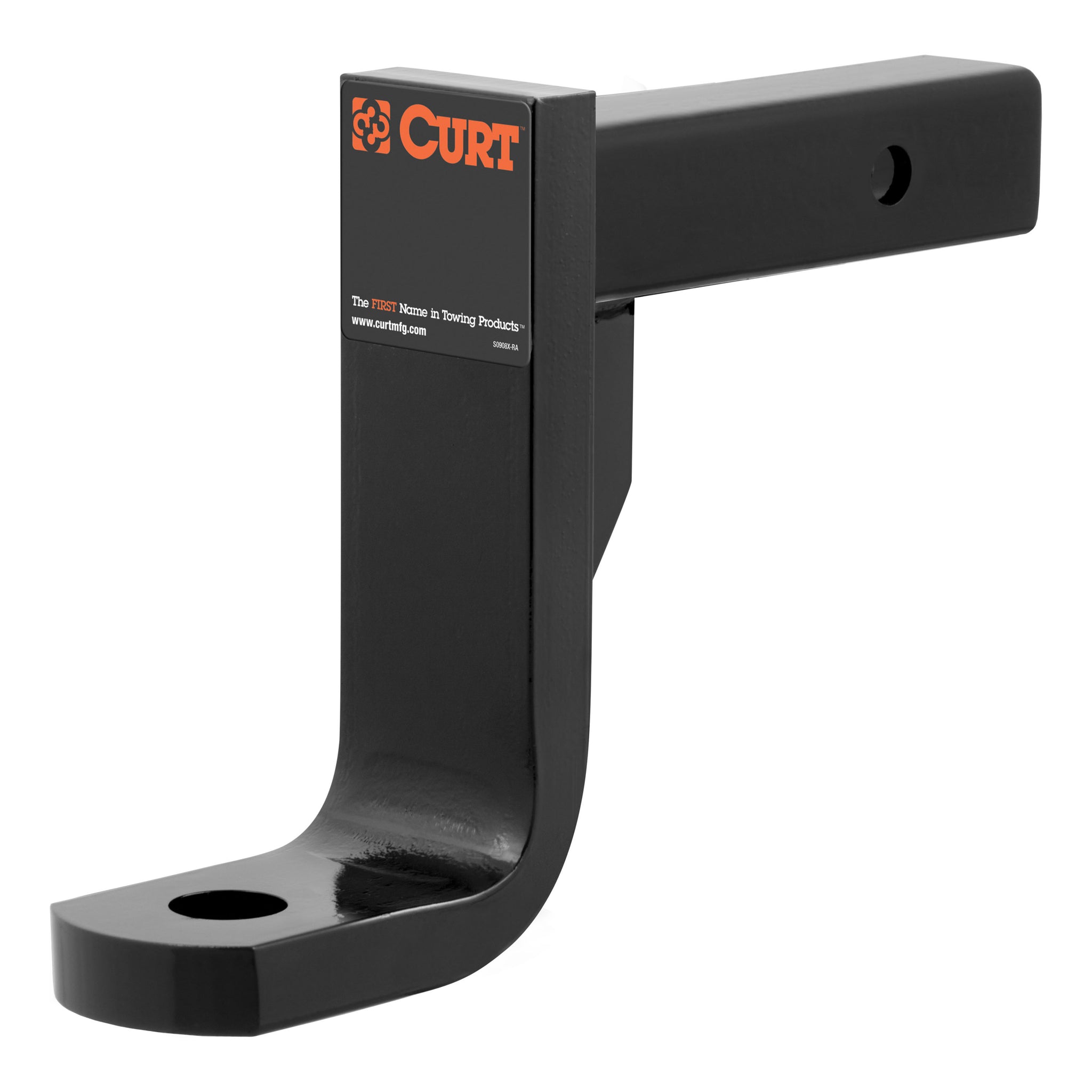

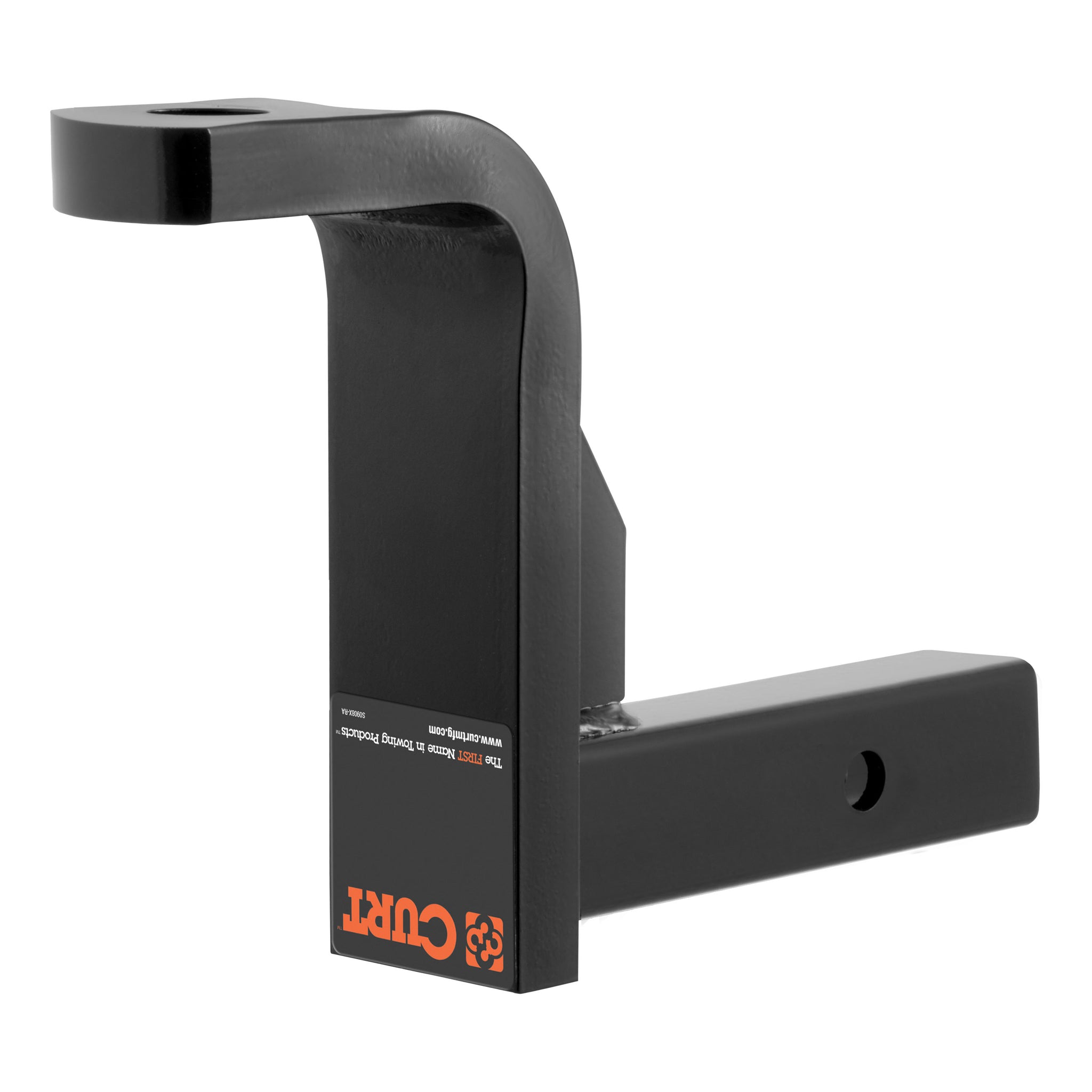

Class 4 Ball Mount (2" Shank 10000 Lbs. 8" Drop 9-3/8" Long)

When you demand more from your towing equipment, CURT heavy-duty ball mounts answer the call. For towing those especially heavy loads and bulky trailers, you need a ball mount that knows how to handle itself when the going gets tough. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a few different drop height options and the ability to flip for optional rise, CURT heavy-duty ball mounts are built to work as hard as you do, from sunup to sundown. This HD ball mount has a gross trailer weight capacity of 10,000 lbs. and tongue weight rating of 1,000 lbs. It measures 9-3/8" in length, has a 8" drop and can be flipped to provide 6-3/4" of rise. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.

• 6-3/4" rise or 8" drop for precise trailer leveling

Attributes:

• Brand Name: CURT
• GTIN: 00612314011384
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Class ID: 0
• Container Cases Qty - XA: 0
• Container Pallet Qty - XA: 0
• Container Unit Qty - XA: 0
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 0
• Drop: 8 IN
• Finish - XA: GLOSS BLACK POWDER COAT
• Gross Trailer Weight (GTW): 10,000 LB
• Item Class - XA: OMF
• Item Height - XA: 2.500
• Item Length - XA: 13.500
• Item Width - XA: 9.000
• Master Case Height Inches - XA: 0.000
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 0.000
• Master Case Qty - XA: 0
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 0.000
• Master Case Width Inches - XA: 0.000
• Material - XA: Carbon Steel
• Mount Type Description - XA: Blank
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 0
• Pallet Cases Per Layer - XA: 0
• Pallet Layer of Cases - XA: 0
• Pallet Qty - XA: 225.000
• Pallet Total Height Inches - XA: 0.000
• Pallet Total Weight Per - XA: 0.000
• Parcel Allowed - XA: Yes
• Product Weight - XA: 11.200
• Rate Class - XA: 60.0
• Receiver Tube Size: 2 IN
• Retail Height - XA: 2.500
• Retail Length - XA: 13.500
• Retail Width - XA: 9.130
• Rise: 6 3/4 IN
• Sales Family Code - XA: ACCES
• Sales Family Description - XA: ACCESSORIES
• Sales Group Description - XA: BALL MOUNT
• Shipping Weight - XA: 12.000
• Side Application Type Description - XA: Blank
• Tariff 301 - XA: No
• Tongue Weight (TW): 1,000 LB
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 13.5000 x 9.1300 x 2.5000 inches
• Weight: 12.0000 POUNDS
