Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole

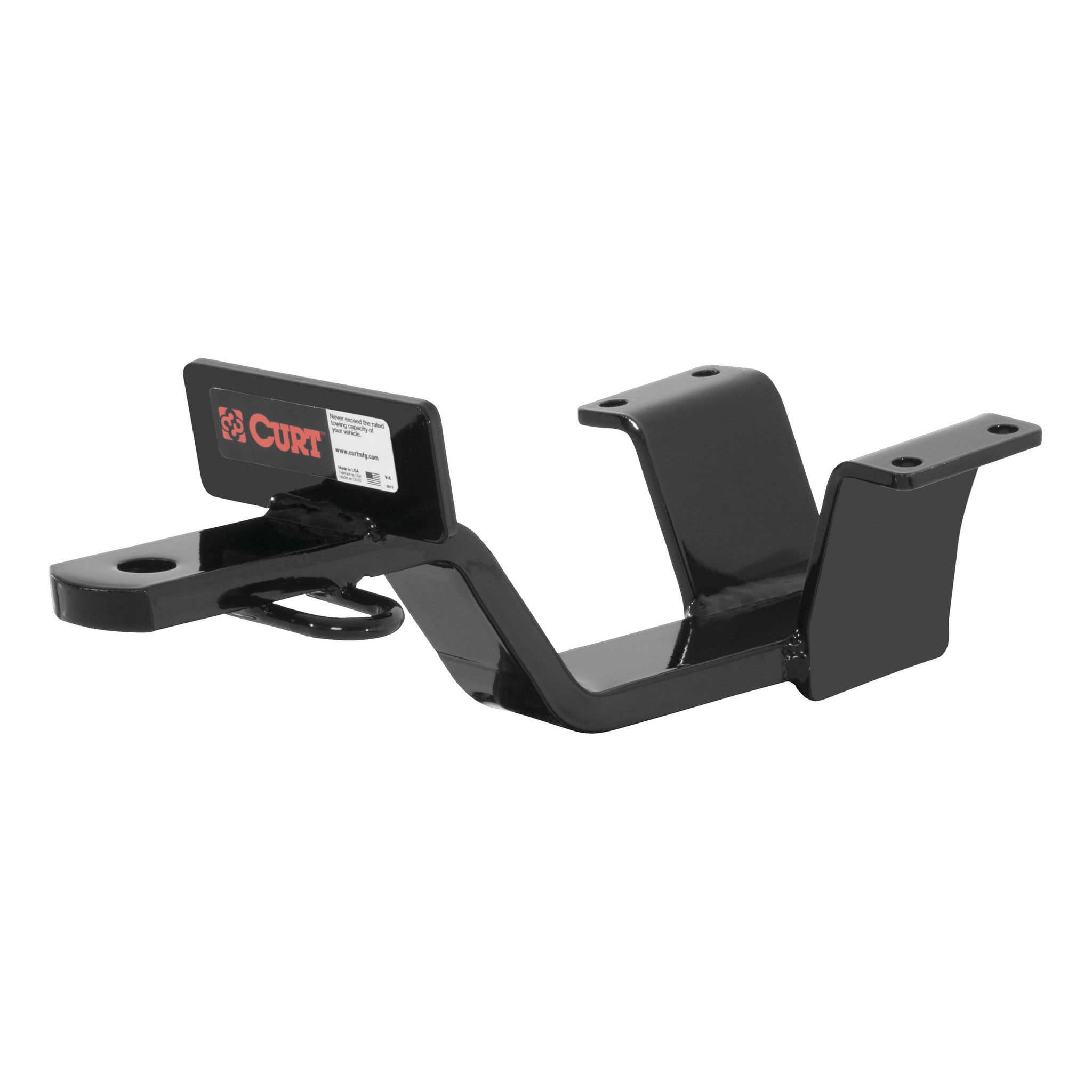

CURT Class 1 Fixed-Tongue Trailer Hitch with 3/4" Trailer Ball Hole


Share this Product

CURT class 1 trailer hitches are the lightest-duty hitches of our rear mount lineup. They are engineered for reliability, welded together with quality steel and blasted clean for a smooth finish. Tested to meet the strict demands of the industry, this CURT class 1 hitch has a capacity to tow up to 2,000 lbs. of gross trailer weight and 200 lbs. of tongue weight. This means it can handle a variety of small trailers such as single-axle utility trailers, canoe and kayak trailers, dirt bike trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This class 1 hitch is a fixed-tongue hitch, having a fixed draw bar to accept a trailer ball rather than a receiver tube to accept a ball mount. Class 1 hitches are typically mounted on compact cars, full-size cars and some smaller crossover SUVs, minivans and compact SUVs. This particular hitch is designed to be a custom-fit trailer hitch for certain years of the Hyundai Sonata sedan (to verify your vehicle compatibility, see the CURT application guide at It features a square tube frame. Each CURT class 1 hitch is co-cured with a liquid Bonderite coating and a high-gloss black powder coat that provide a lasting defense against rust, wear and harmful UV rays.

Additional Attributes:

  • GTIN: 00612314502172
  • Main Body Shape: Square
  • Retail Length - XA: 43.000
  • Class ID: 1
  • Warranty: Limited Lifetime Warranty (One-Year Finish One-Year Parts)
  • Weight Distribution (WD): n/a
  • Item Length - XA: 42.750
  • Parcel Allowed - XA: Yes
  • Weight Distribution Tongue Weight (WDTW): n/a
  • Box Height in Inches - XA: 12
  • Product Weight - XA: 20.000
  • Box Width in Inches - XA: 18
  • Tariff 301 - XA: No
  • Retail Height - XA: 13.000
  • Item Width - XA: 17.380
  • Item Height - XA: 7.620
  • Retail Width - XA: 21.000
  • Tongue Weight (TW): 200 LB
  • Receiver Tube Size: No Receiver Tube
  • Weight Carrying Capacity (WC): 2000 LB
  • Box Length in Inches - XA: 42
  • Rate Class - XA: 70.0
  • Shipping Weight - XA: 26.400
  • Item Class - XA: MFH


  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.000 x 21.000 x 13.000 inches
