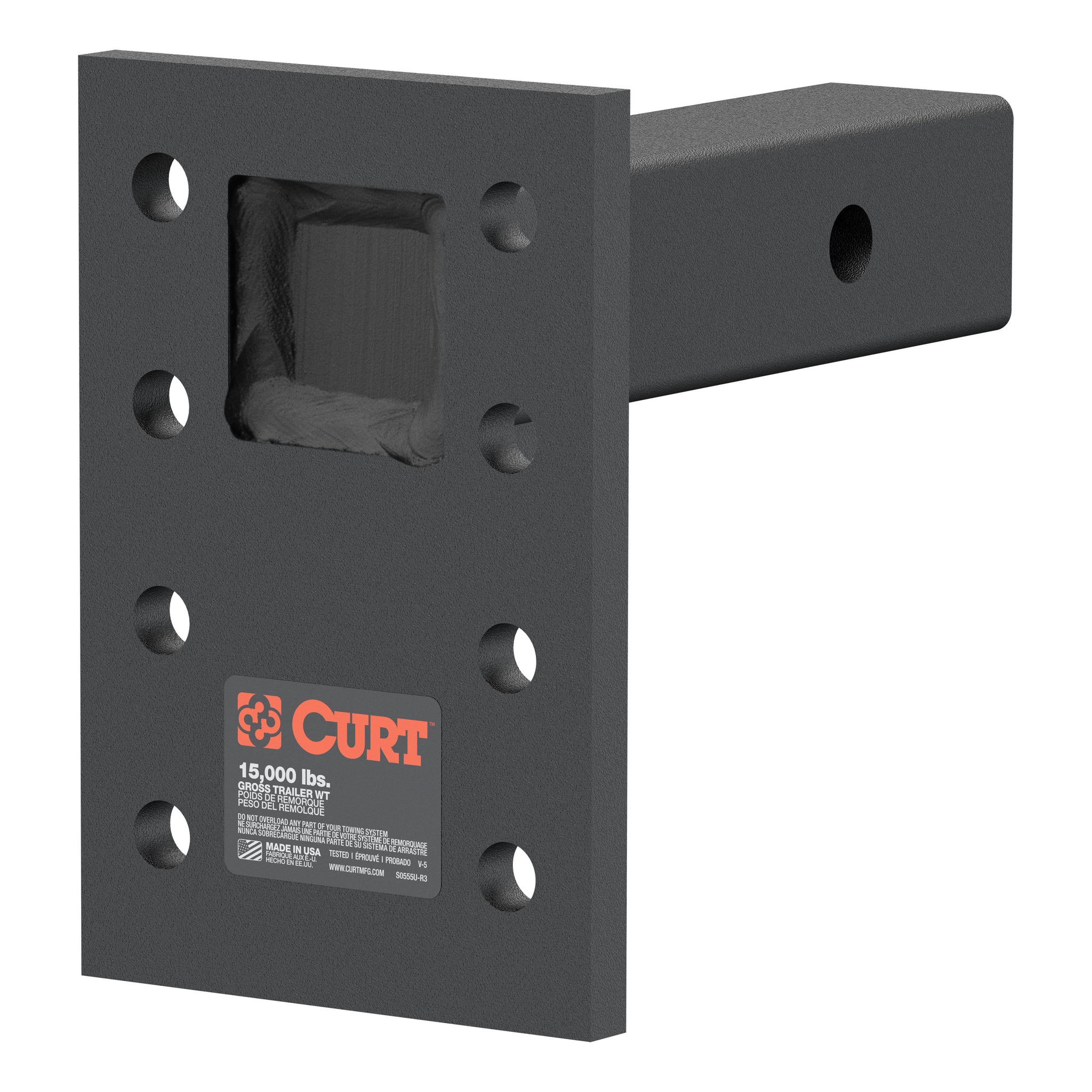

Adjustable Pintle Mount (2" Shank 15000 Lbs. 7" High 6" Long)

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It features a series of mounting holes to provide three different mounting heights for the hook and can be mounted in any 2" x 2" receiver tube opening. This pintle mount offers a gross trailer weight capacity up to 15,000 lbs. and features a total plate height of 7", providing up to 6-1/2" of drop (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The heavyweight towing done with pintle hitches implies a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all our pintle mounts, lunette eyes and combination pintle hitches. This pintle mount is coated in a tough black carbide powder coat finish to provide the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.

• Face plate holes spaced apart 1-3/4" high x 3-5/16" wide

Attributes:

• Brand Name: CURT
• GTIN: 00612314030026
• Box Height in Inches - XA: 9
• Box Length in Inches - XA: 11
• Box Width in Inches - XA: 9
• Class ID: 0
• Container Cases Qty - XA: 0
• Container Pallet Qty - XA: 0
• Container Unit Qty - XA: 0
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 0
• Finish - XA: CARBIDE BLACK POWDER COAT
• Gross Trailer Weight (GTW): 15,000 LB
• Item Class - XA: OMF
• Item Height - XA: 0.000
• Item Length - XA: 0.000
• Item Width - XA: 0.000
• Master Case Height Inches - XA: 0.000
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 0.000
• Master Case Qty - XA: 0
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 0.000
• Master Case Width Inches - XA: 0.000
• Material - XA: Blank
• Max Drop: 6-1/2 IN
• Mount Type Description - XA: Blank
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 0
• Pallet Cases Per Layer - XA: 0
• Pallet Layer of Cases - XA: 0
• Pallet Qty - XA: 175.000
• Pallet Total Height Inches - XA: 0.000
• Pallet Total Weight Per - XA: 0.000
• Parcel Allowed - XA: Yes
• Plate Height: 7
• Product Weight - XA: 0.000
• Rate Class - XA: 65.0
• Receiver Tube Size: 2 IN
• Retail Height - XA: 9.000
• Retail Length - XA: 11.000
• Retail Width - XA: 9.000
• Sales Family Code - XA: ACCES
• Sales Family Description - XA: ACCESSORIES
• Sales Group Description - XA: PINTLE MOUNT
• Shank Length: 8-1/2 IN
• Shipping Weight - XA: 14.300
• Side Application Type Description - XA: Blank
• Tariff 301 - XA: No
• Truckload Cases Qty - XA: 0
• Truckload Pallets Qty - XA: 0
• Truckload Units Qty - XA: 0
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 0
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 11.0000 x 9.0000 x 9.0000 inches
• Weight: 14.3000 POUNDS
