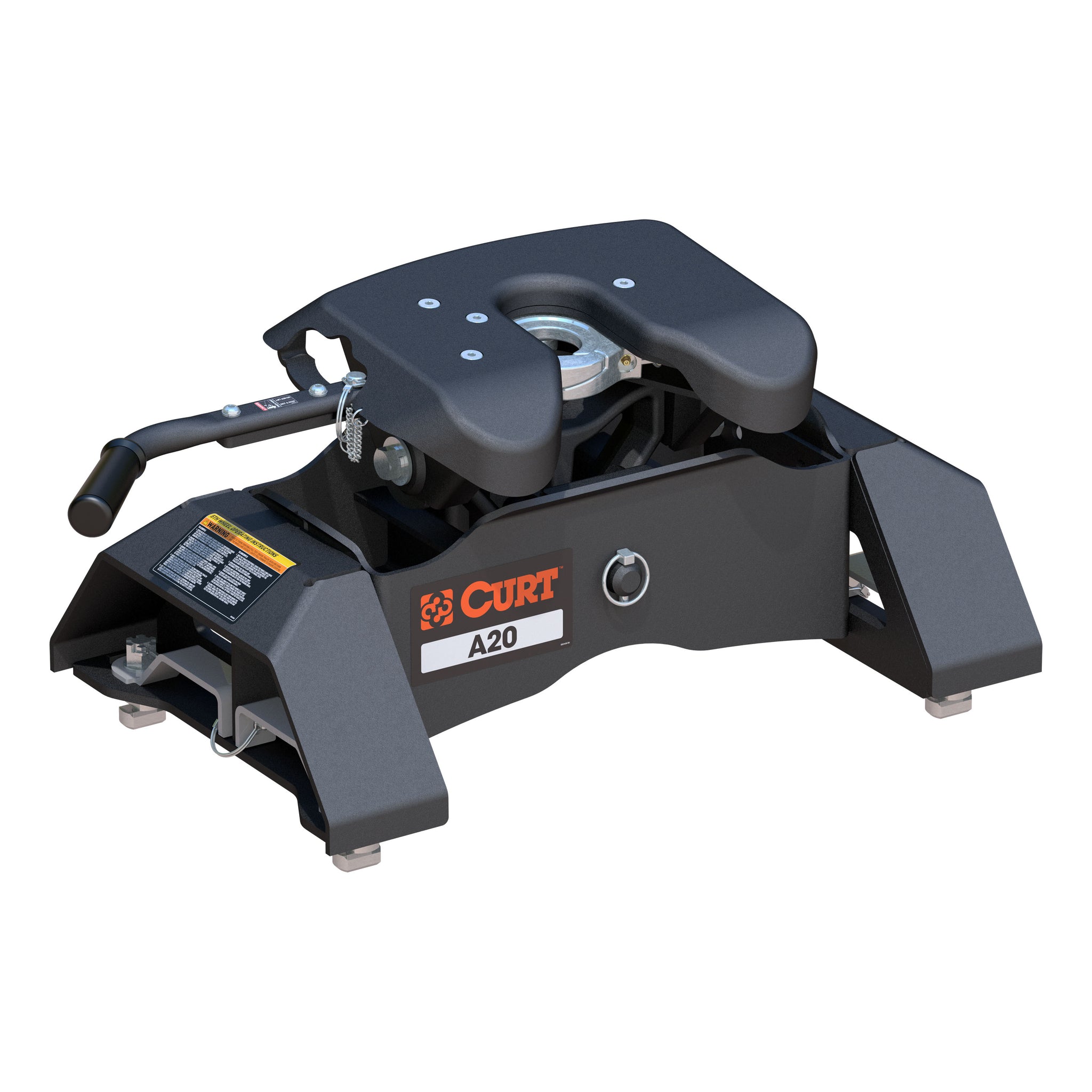

A20 5th Wheel Hitch Select Silverado Sierra 2500 3500 HD 8' Bed Puck System

The CURT A20 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 20K 5th wheel hitch. Like our A16 hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A20 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select Chevrolet or GMC trucks with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the CURT A20 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises. Once installed, the A20 is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab. To protect the A20 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

• Adjustable anchors to eliminate chucking between the legs and puck system

Attributes:

• Brand Name: CURT
• GTIN: 00612314048045
• Box Height in Inches - XA: 0
• Box Length in Inches - XA: 0
• Box Width in Inches - XA: 0
• Container Cases Qty - XA: 0
• Container Pallet Qty - XA: 0
• Container Unit Qty - XA: 0
• Container Volume Cubic Feet - XA: 0.00000
• Container Volume Cubic Meter - XA: 0.00000
• Container Weight KG - XA: 0
• Container Weight Lbs - XA: 0
• Finish - XA: CARBIDE BLACK POWDER COAT
• Gross Trailer Weight (GTW): 20,000 LB
• Installation Height: 13 IN - 17 IN
• Item Class - XA: OBS
• Item Height - XA: 14.500
• Item Length - XA: 24.500
• Item Width - XA: 16.000
• Master Case Height Inches - XA: 14.500
• Master Case ITF14: 0
• Master Case ITF14 - XA: 0
• Master Case Inner Pack Qty - XA: 0
• Master Case Length Inches - XA: 24.500
• Master Case Qty - XA: 1
• Master Case Volume Cubic Feet - XA: 0.00000
• Master Case Weight Lbs - XA: 153.300
• Master Case Width Inches - XA: 28.700
• Material - XA: Carbon Steel
• Mount Type Description - XA: Not Applicable
• Pallet Case Per - XA: 0
• Pallet Case Per Layer - XA: 0
• Pallet Cases Per - XA: 1
• Pallet Cases Per Layer - XA: 1
• Pallet Layer of Cases - XA: 1
• Pallet Qty - XA: 1.000
• Pallet Total Height Inches - XA: 19.500
• Pallet Total Weight Per - XA: 178.300
• Parcel Allowed - XA: No
• Product Weight - XA: 152.300
• Rate Class - XA: 60.0
• Retail Height - XA: 14.500
• Retail Length - XA: 24.500
• Retail Width - XA: 16.000
• Sales Family Code - XA: FIFTH
• Sales Family Description - XA: FIFTH WHEEL
• Sales Group Description - XA: 20K FIFTH WHEEL
• Shipping Weight - XA: 152.300
• Side Application Type Description - XA: Not Applicable
• Tariff 301 - XA: Yes
• Truckload Cases Qty - XA: 20
• Truckload Pallets Qty - XA: 20
• Truckload Units Qty - XA: 20
• Truckload Volume Cubic Feet - XA: 0.00000
• Truckload Weight - XA: 3566
• Vertical Load: 5,000 LB
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Extended Information:

• Country of Origin: CN
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 24.5000 x 16.0000 x 14.5000 inches
• Weight: 152.3000 POUNDS
