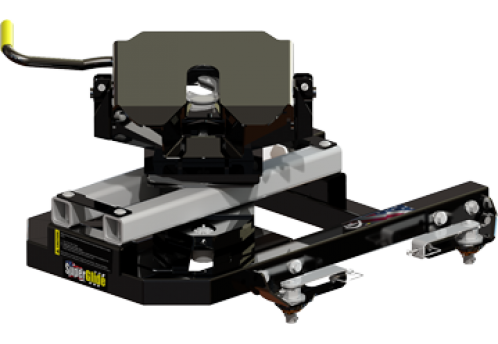

OE Puck Series 20K SuperGlide, Automatically Sliding Fifth Wheel Hitch for Short Bed GM Trucks #PLR2915

PullRite OE Puck Series 20K SuperGlide, Automatically Sliding Fifth Wheel Hitch for Short Bed GM Trucks #PLR2915

Oversized – Additional freight charges will apply

$2,050.00

For availability contact one of our locations here

Operating hours 8am-4:30pm CST Monday-Friday


Share this Product


Description

The #2915 20K OE Puck Series SuperGlide is a fully automatic, sliding fifth wheel hitch designed specifically for Chevy/GMC short bed trucks with pucks.  The #2915 is similar to the #2715, but with a heftier weight rating for pulling larger fifth wheel trailers. The hitch head and the cam arm mechanism for the #2900 is built with heavier components out of high quality American steel.  Those components are well equipped to handle the increased torque of a heavier trailer as the SuperGlide safely and quickly moves your trailer away from your truck cab during turns!  This direct attachment hitch mounts directly to your truck's OE puck mounting points...NO ADAPTER RAILS NEEDED!  Optimally designed for trailers with a King Pin located even with, or ahead of the leading edge of the trailer (measured at the corners of the trailer). There are many variables that can influence the ability to make a full 90° turn; including the trailer width, trailer profile, radius corners and truck cab profile. In many cases, even if the king pin is located under the trailer, behind the leading edge of the trailer, the SuperGlide may allow 90° turns.  To help you determine clearance, call PullRite Customer Service at (800) 443-2307.  SAE J2638 Tested and Made in the USA.

Features

  • 20,000 lbs. max gross trailer weight towing capacity
  • 5,000 lbs. max trailer pin weight capacity
  • 14" of fully automatic slide
  • Direct mount, automatically sliding fifth wheel hitch for trucks with OE puck mounting points
  • Dual articulating head moves side-to-side and front-to-back during towing for a smoother ride
  • Hitch head easily removable with pins and clips...no tools needed
  • Locking jaw closes automatically around king pin
  • Latch handle locks automatically when locking jaws are engaged
  • No secondary locking devices to engage means no reaching over high-sided truck beds to get dirty
  • Extended handle keeps you out of the bed
  • Precision, laser cut jaw components cradle the trailer's king pin 140º for a secure, tight fit
  • Tight fitting parts give you the best ride possible
  • Adjustable tension bolt prevents bumping or chucking
  • A Capture Plate is required to activate the sliding cam arm
  • Hitch comes fully assembled
  • Hitch stands 18.5" to top of hitch plate
  • SAE J2638 tested
  • Made in the USA

Specifications

Gross Trailer Weight

20,000 lbs.

Gross Pin Weight

5000 lbs.

Mount Type

Sliding

Pivot Type

4-Way
Color/ Finish Black Powder Coated
With Mounting Hardware No
Drilling Required No
Cutting Required Yes
Material Steel
Lock Position Handle
Estimated Install Time (Hours) 2
